Bead Ring Series – Type R
Precision Air Suspension for High-Level Vibration Isolation
📌 Product Overview

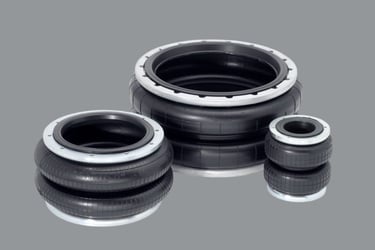

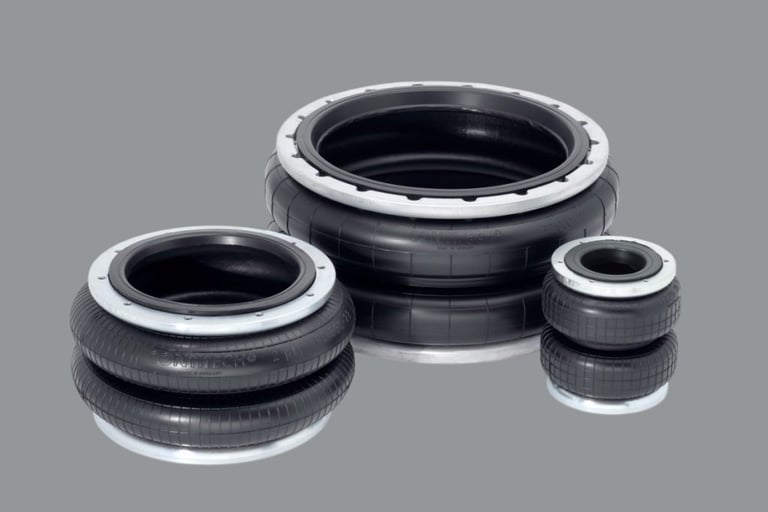

The Bead Ring Series (Type R) Air Springs from Flexotech are designed for advanced vibration isolation and suspension systems, especially where high precision and stability are required. These air springs are constructed with bead ring connections and are ideal for applications that demand passive or active isolation with extremely low natural frequencies.
They are widely used in both lightweight inspection systems and heavy-duty machine foundations, offering exceptional performance across a range of industrial and scientific settings.
🛠️ Design Features
Bead ring connection system for secure, leak-proof fitting
Natural frequencies as low as 0.5 to 3.5 Hz
No internal friction or wear parts – maintenance-free
Can be used for passive isolation or active systems with air control
Suitable for vertical and horizontal mounting
Works with compressed air or nitrogen
✅ Key Advantages
Offers ultra-low natural frequencies for superior isolation
Ideal for sensitive instruments and equipment
Robust construction ensures long operating life
No lubrication or mechanical linkage required
Precise leveling and height control when combined with air regulators
🏭 Typical Applications
CMM Machines (Coordinate Measuring Machines)
Microscopes and Optical Inspection Systems
High-speed Presses
Heavy Machine Foundations
Semiconductor Manufacturing Equipment
Precision Weighing Systems
Laboratory and Cleanroom Installations
