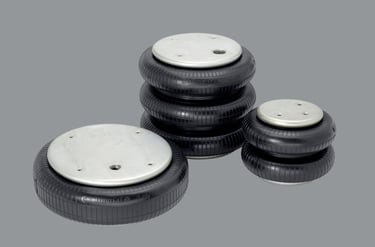

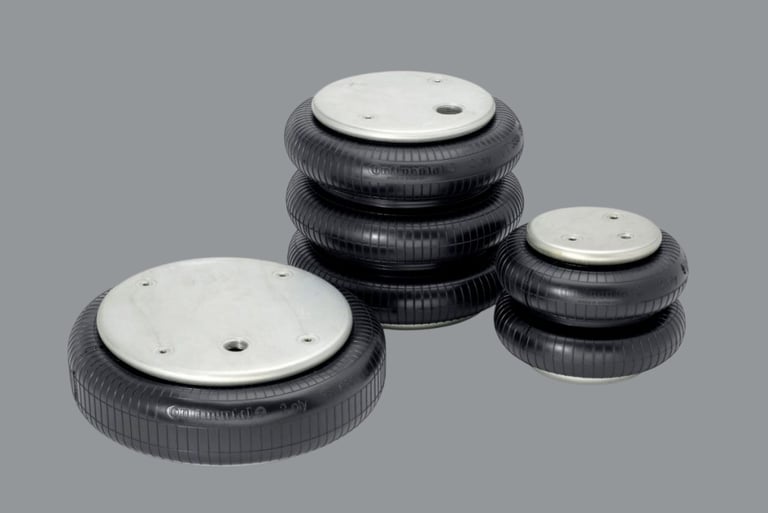

CRIMPED SERIES -Type C
Compact & Durable Air Spring for Low-Profile Vibration Isolation & Actuation
The Flexotech Crimped Series Air Springs – Type C are designed for compact installations where space-saving and high-performance pneumatic actuation or vibration control is required. This series features a crimped bead-end closure, creating a strong and leak-proof seal between the flexible bellow and the mounting plate — ideal for fixed-load vibration isolation, pneumatic cylinders, and suspension systems.
Whether you're working with industrial presses, automotive test rigs, or HVAC vibration isolation, the Crimped Series offers a reliable and maintenance-free solution.
🛠️ Design Features
Crimped steel bead end ensures a secure, durable closure without external clamping rings
Highly flexible reinforced elastomer bellow resists fatigue and weathering
Compact profile fits tight spaces in automated or mechanical assemblies
Capable of handling axial, angular, and lateral motion
Operates silently with no internal seals or frictional contact
Ideal for static or dynamic loading where compact air spring isolation is needed
📐 Technical Specifications
Operating pressure range: Up to 7 bar
Maximum stroke: Varies by size (typically 30–150 mm)
Deflection type: Axial and angular
Material: High-strength rubber reinforced with synthetic cord
End connection: Factory-crimped plates (custom options available)
✅ Advantages
Leak-proof design eliminates maintenance
Space-efficient form for compact machines and mobile platforms
High vibration isolation efficiency across a wide load range
Longer lifespan than mechanical springs or bushings
Silent operation – ideal for noise-sensitive environments
📌 Typical Applications
Packaging machines and press systems
Conveyor supports and assembly lines
HVAC vibration isolation pads
Mobile equipment suspension
Truck cabin seats or trailer systems
Test benches and impact load absorption
