Rolling Lobe Series – Type S

Compact Sleeve-Type Air Springs for Smooth, Low-Frequency Isolation

📌 Product Overview

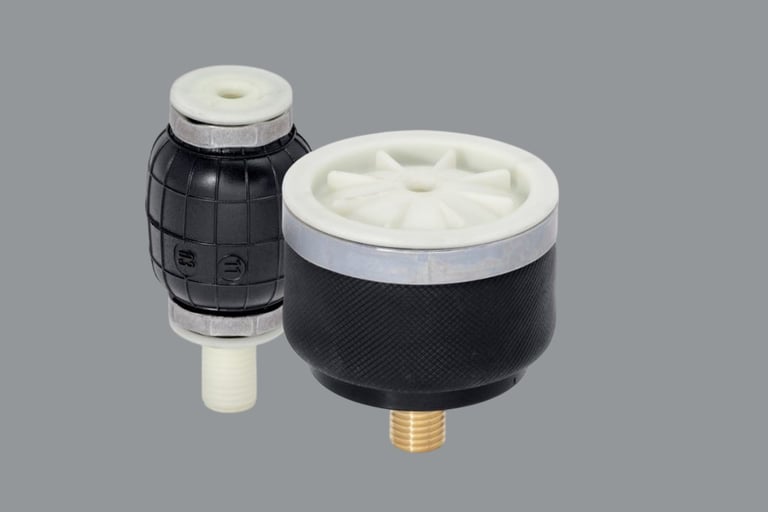

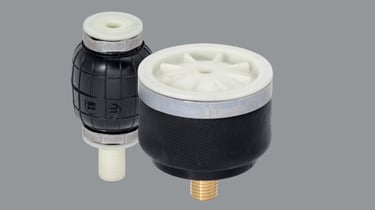

The Rolling Lobe Series (Type S) from Flexotech is a sleeve-type air spring that uses a rolling motion of the rubber lobe to allow large stroke lengths with minimal internal friction. Fitted with plastic or composite end connections, these air springs are compact, lightweight, and ideal for both passive and active vibration isolation.

With natural frequencies between 0.5 to 3.5 Hz, they are an excellent solution for both lightweight inspection machines and heavier precision equipment where space-saving and low-frequency vibration isolation are essential.

🛠️ Design Features

• Rolling lobe design provides long stroke and low resistance

• Plastic end connections reduce weight and prevent corrosion

• Natural frequency as low as 0.5 Hz

• Extremely smooth motion — no stick-slip effect

• Functions with air or nitrogen, no lubrication required

• Self-centering and ideal for vertical or horizontal movement

✅ Key Advantages

• Very low natural frequency — ideal for sensitive environments

• Handles lateral and vertical loads efficiently

• Compact design for tight installation spaces

• No metal-to-metal contact

• Maintenance-free with long operating life

🏭 Typical Applications

• Laser Cutting & CNC Machines

• Electronic Assembly Lines

• Semiconductor Tools

• Light Load Precision Measuring Equipment

• Optical Benches

• Printing Machinery

• High-Precision Platforms & Tables
